LAN8710A-EZC-TR is a highly integrated 10/100M Ethernet Physical Layer (PHY) transceiver from Microchip (acquired via SMSC), in a compact QFN-32 package (3x3mm) with built-in 25MHz crystal oscillator, 1.8V/2.5V regulator and network transformer interface circuitry - minimal external components required.

The chip's standout feature is HP Auto-MDI/X - the industry's first automatic polarity detection and correction, eliminating TX+/TX- and RX+/RX- cable confusion and greatly simplifying field wiring. The chip is fully IEEE 802.3/802.3u compliant with Auto-Negotiation support.

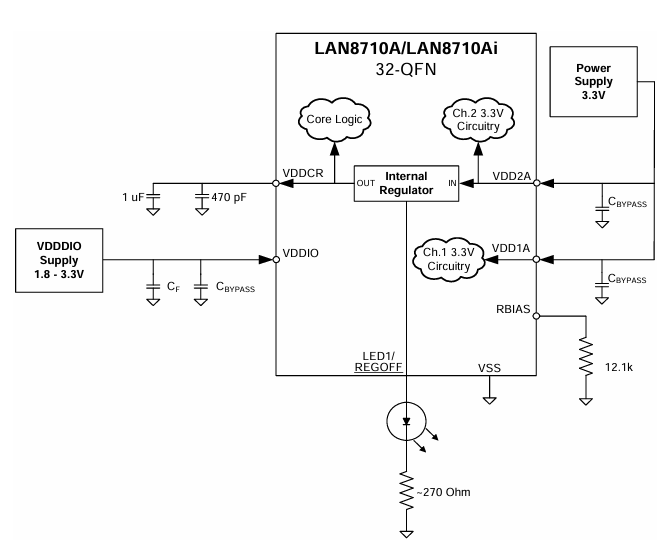

LAN8710A supports MII/RMII/PMI MAC interfaces configurable via MODE pins. Compliant with Energy Efficient Ethernet (EEE) standard (IEEE 802.3az), it automatically enters low-power idle mode, consuming less than 315mW - ideal for power-sensitive IoT and green energy devices.

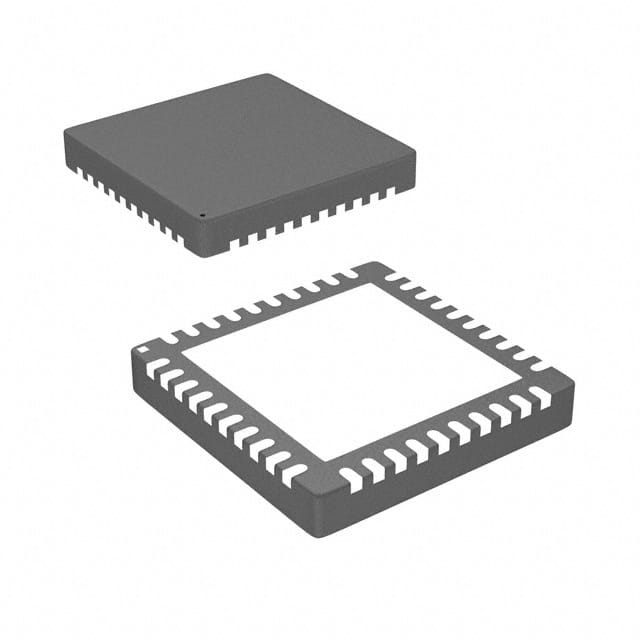

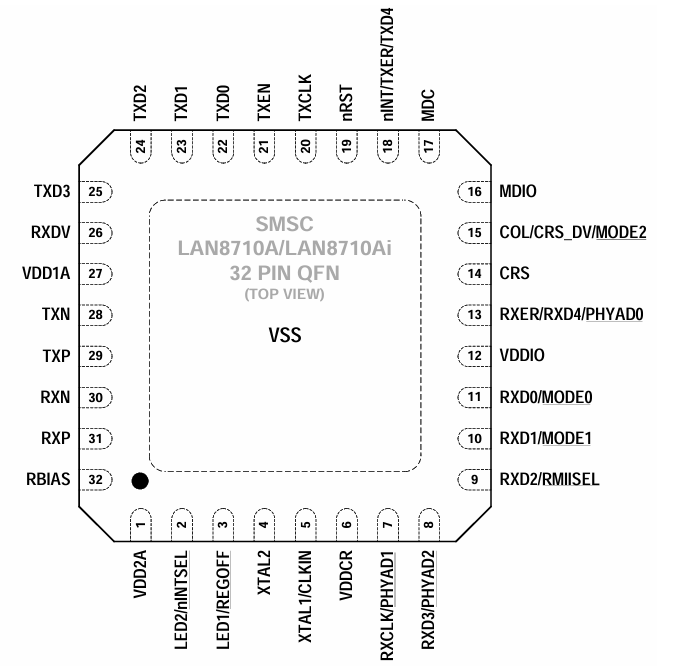

LAN8710A-EZC-TR uses QFN-32 package (Quad Flat No-Lead, 3x3mm) with exposed thermal pad on the bottom. QFN package has no leads extending outward, minimizing PCB footprint - ideal for space-constrained embedded designs. The chip integrates a 25MHz crystal oscillator, 1.8V/2.5V regulator and network transformer interface circuitry with minimal external components.

PCB layout recommendation: bottom pad must be well-grounded with thermal via arrays transferring heat to PCB ground plane. Differential pairs (TX+/TX- and RX+/RX-) should be length-matched and tightly coupled, with 100Ω differential impedance control; surrounding ground fill reduces crosstalk.

• TX+/TX- (Pins 21/22): Transmit Differential Pair：Connect to transmit side of network transformer. Differential output driving 100Ω differential impedance trace. Series resistors (22~33Ω) near the chip recommended to reduce EMI radiation.
• RX+/RX- (Pins 25/26): Receive Differential Pair：Connect to receive side of network transformer. On-chip termination - no external resistors needed. Trace requirements identical: 100Ω differential impedance control.
• REFCLK (Pin 4): Reference Clock：50MHz bidirectional reference clock. Acts as output when MODE[2:0]=001 (chip provides clock); as input otherwise (external MAC provides clock).
• RXD[0:3] (Pins 11-14): Receive Data：MII/RMII receive data bus; specific mode determined by configuration pins. Connect to corresponding data pins on MAC controller.
• TXD[0:3] (Pins 6-9): Transmit Data：MII/RMII transmit data bus. Specific pin functions determined by MODE[2:0] configuration pins.
• CRS/COL (Pins 17/18): Carrier Sense / Collision：MII mode carrier sense and collision detection signals. Not used in RMII mode (reassigned for other functions).
